Qingdao Chenyang Electrical Technology Co., Ltd. is one of the leading manufacturers and suppliers of residential hybrid solar inverter in China. We are committed to providing high quality customized products with low price. Welcome to wholesale advanced residential hybrid solar inverter made in China here from our factory. Also, quotation is available.
Product Introduction

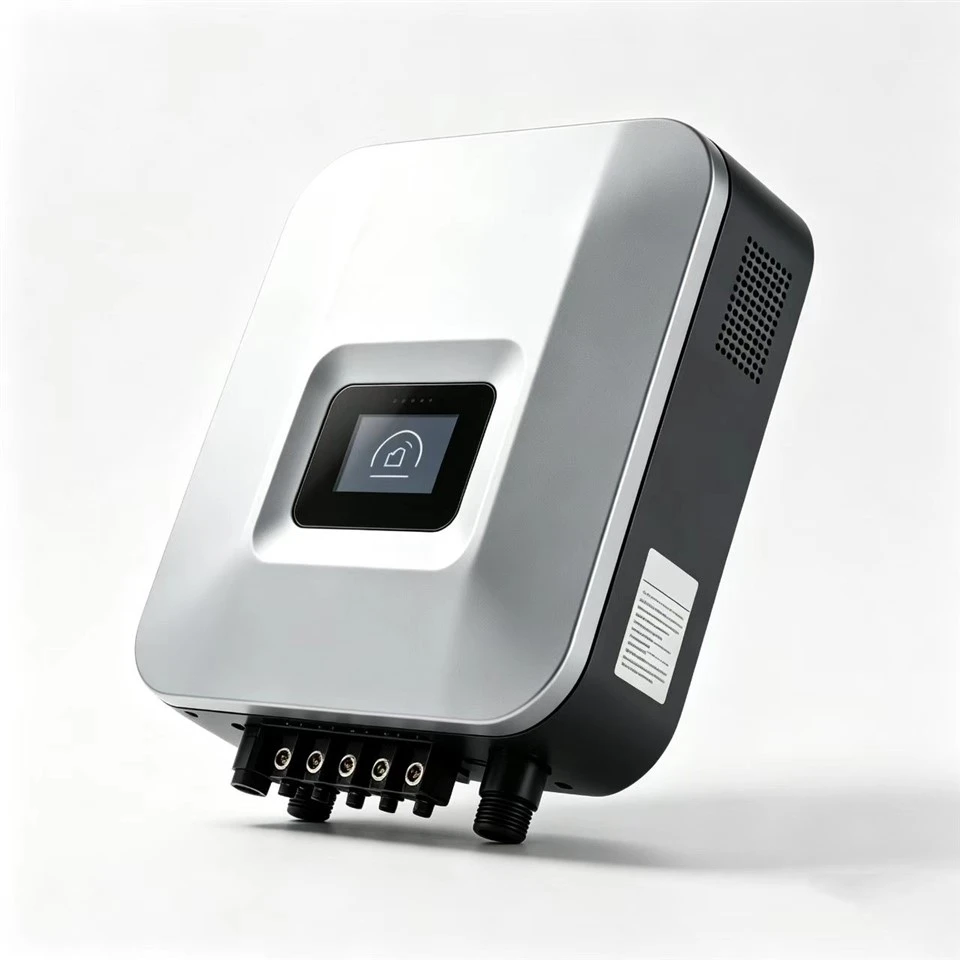

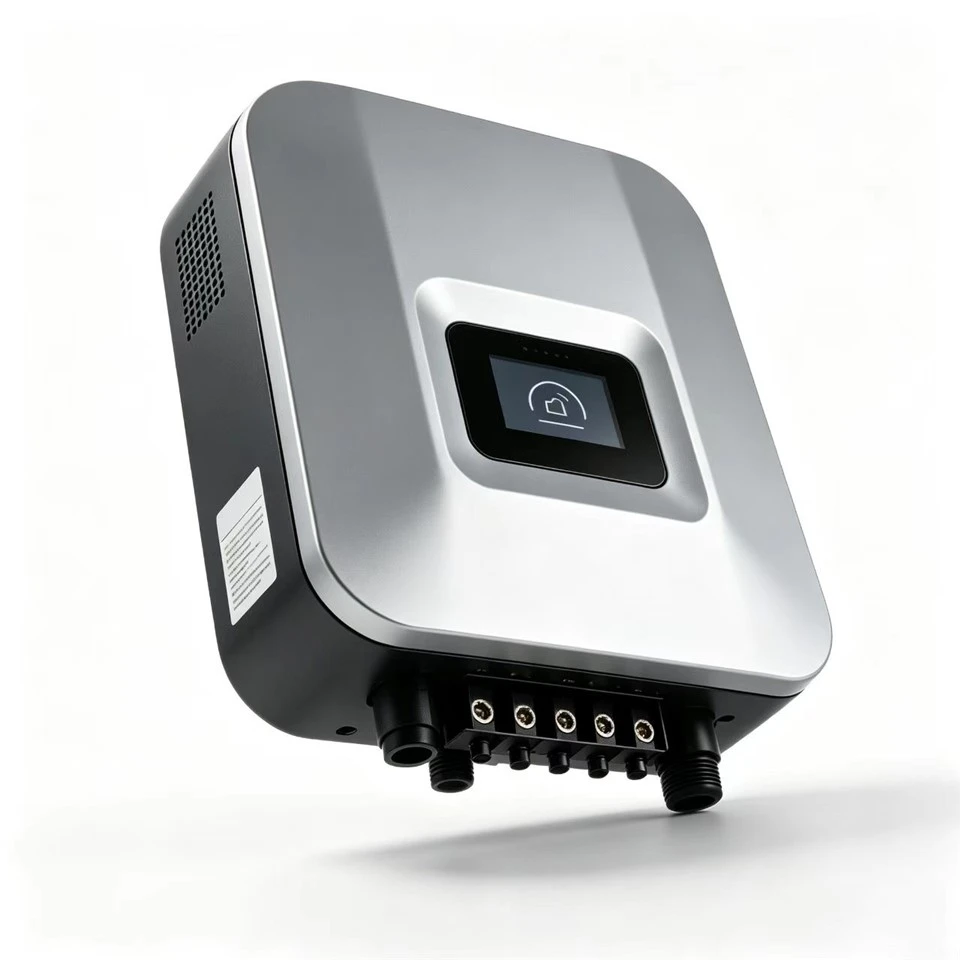

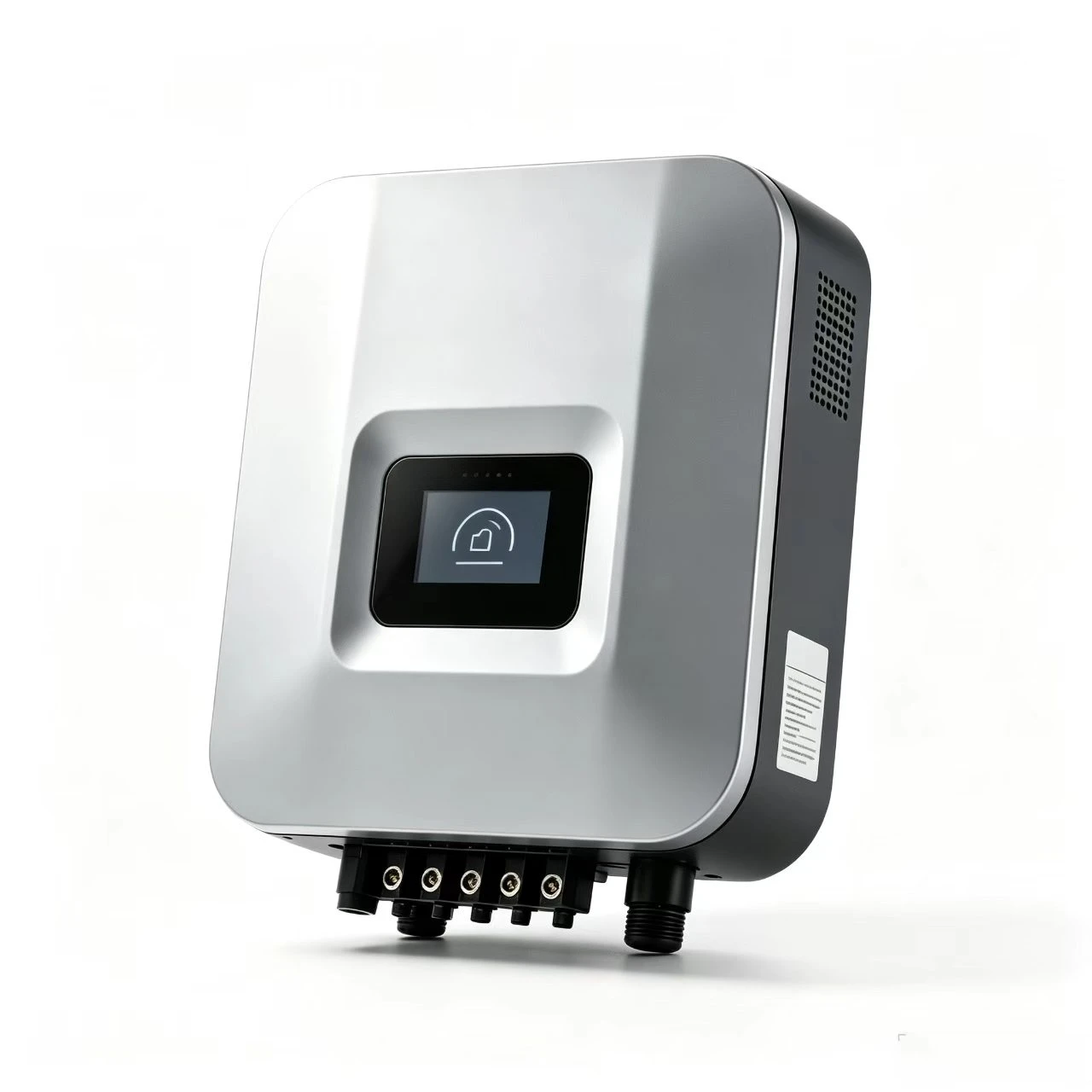

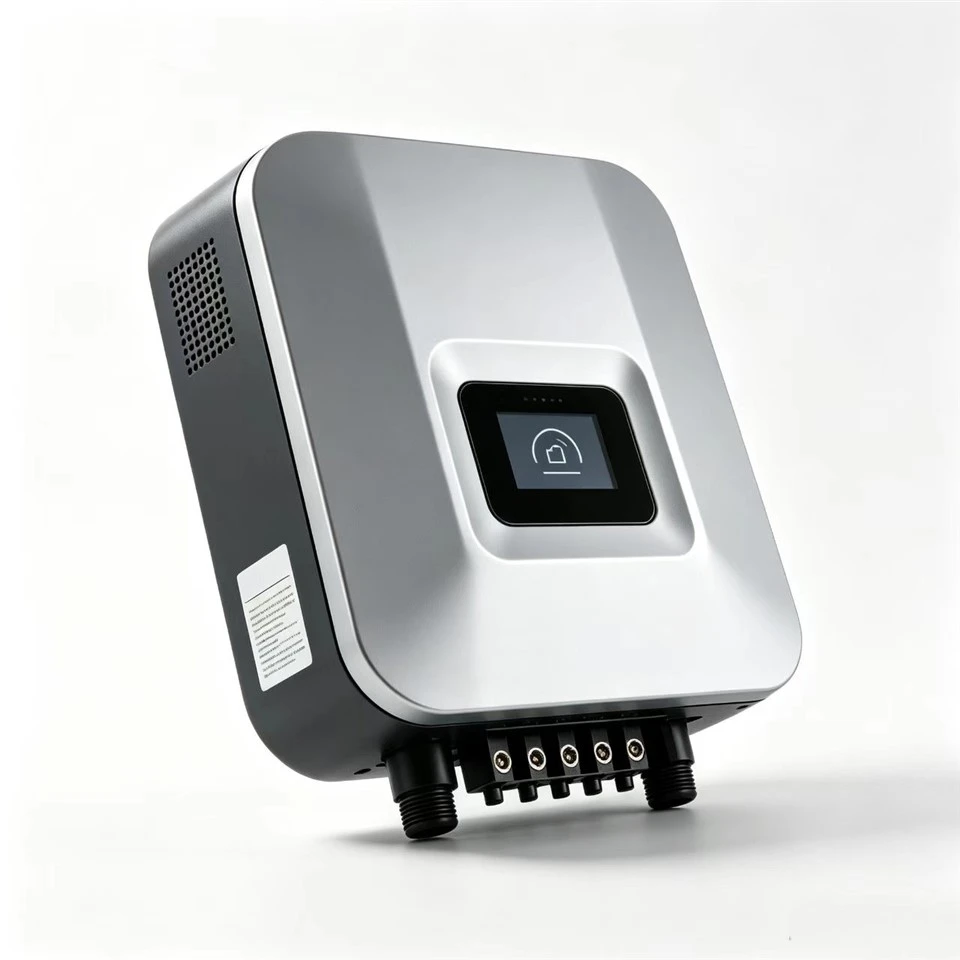

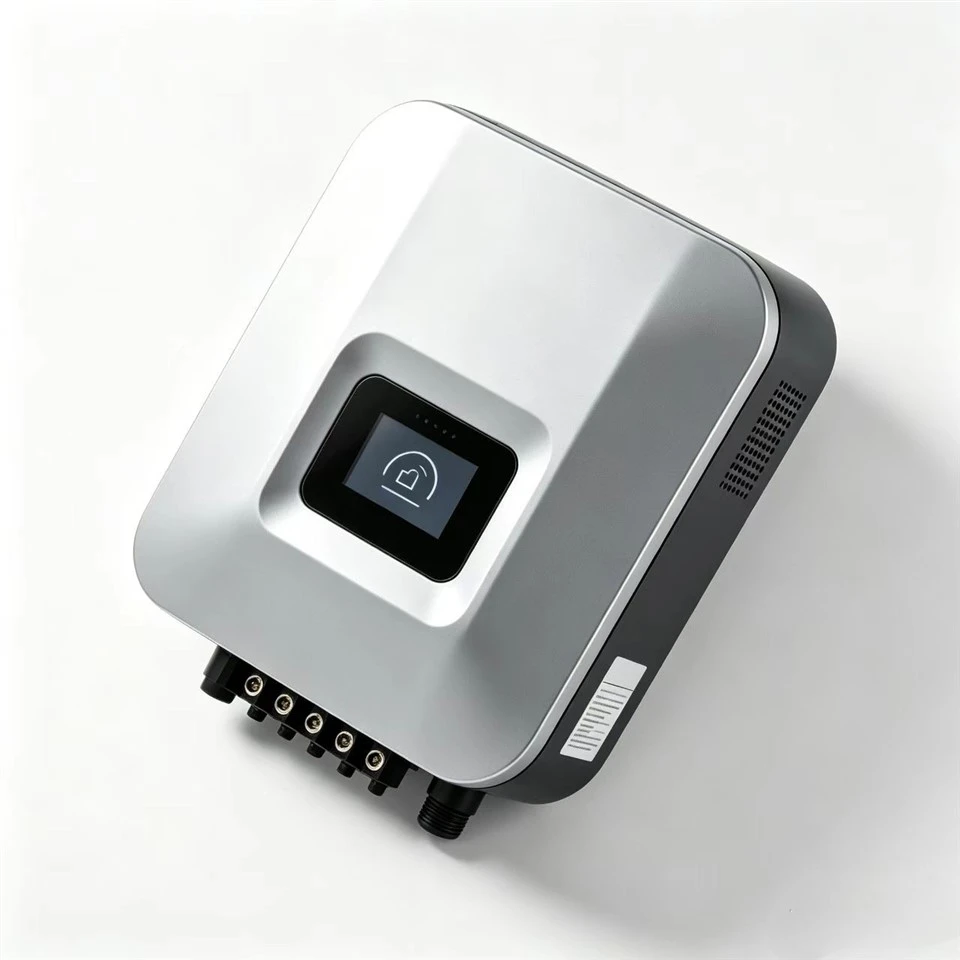

- Our 6kW and 8kW low-voltage hybrid inverters adopt 48V/51.2V battery architecture, designed for small commercial premises, factory UPS backup and telecom base station power supply scenarios. The 8kW model supports short-time high-power loads to meet the peak power demand of industrial equipment.
- These inverters integrate PV charging, battery management and AC output. Equipped with dual MPPT trackers, they maximize solar energy harvesting. They deliver stable pure sine wave AC output. When grid power fails, they switch rapidly to off-grid backup mode to sustain critical loads.
- With high conversion efficiency, they reduce energy loss. Multiple built-in protections safeguard the whole system against overvoltage, overcurrent, overheating and short circuit. The IP65-rated enclosure supports outdoor wall mounting and adapts to wide temperature ranges. WiFi, CAN and RS485 communication enable remote monitoring via mobile APP. Scalable and robust, they are ideal energy control solutions for small commercial solar storage and emergency backup power systems. Word count:196
Specification Table
|
Category |
6kW Hybrid Inverter |
8kW Hybrid Inverter |
|
Basic Info |
6kW single-phase hybrid inverter, rated 6000W, 48V/51.2V, for small commercial, factory UPS & telecom base station |
8kW single-phase hybrid inverter, rated 8000W, 48V/51.2V, suitable for scenarios with short-time high-power loads, small commercial & factory UPS |
|
PV Input |
Max PV input 7800W, 2 MPPT trackers, PV voltage 120~500V |
Max PV input 10400W, 2 MPPT trackers, PV voltage 120~500V |
|
Battery Parameters |
48V/51.2V lithium battery, charge/discharge current 120A, CAN/RS485 |
48V/51.2V lithium battery, charge/discharge current 160A, CAN/RS485 |
|
AC Output |
Single phase 220/230V, 6000VA, pure sine wave, THDi＜3% |
Single phase 220/230V, 8000VA, pure sine wave, THDi＜3% |
|
Off-grid Backup |
6000W backup output, transfer time＜10ms |
8000W backup output, transfer time＜10ms |
|
Efficiency |
Max efficiency:97.6%, European efficiency:97.0% |
Max efficiency:97.6%, European efficiency:97.0% |
|
Protection & Safety |
IP65 outdoor rating, working temperature -25~60℃, intelligent air cooling |
IP65 outdoor rating, working temperature -25~60℃, intelligent air cooling |
|
Communication & Display |
LCD screen, WiFi/RS485/CAN, remote APP monitoring |
LCD screen, WiFi/RS485/CAN, remote APP monitoring |
